Re: 2D Frequency Pattern Visualization
Objective and concept:
I’m interested in the popularity of four scifi movies: Star Trek Into Darkness, Cloud Atlas, Gravity and Prometheus. So I’d like to create a visualization which shows the popularity of those four movies over time. To measure the popularity, I divide the time into months, and retrieve how many times the movie is borrowed in one month. The more times the movie is borrowed, the more popular they are. I decide to use bar graph to visualize the result.
To query the dataset, I use the following scripts:
The query takes about 20 seconds. And the results look like:

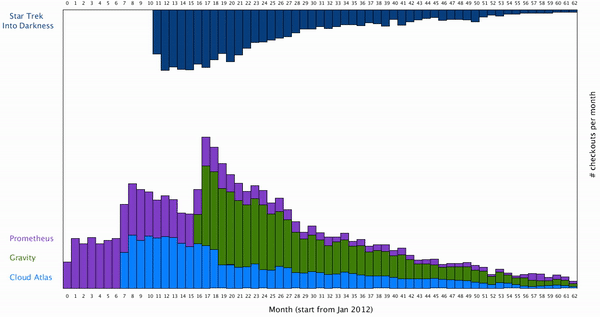

Here is my initial bar graph:
After this, in order to figure out the relationship of each dataset, I think It may be better to show
the trend of individual movie, compared to the rest of the movie. To do this, I think maybe it’s better to show the trend of an individual movie on the top of the screen, and the show the trend of rest of three movies in the bottom.
This way the users can isolate the individual movie they are interested in.
To create a smooth transition between the movie from which all the movies are cluster together, to a stage where one movie is isolated, I want to create a smooth animation for this. To do this, we can think the individual rectangles of bar graph move vertically along y axis. The result looks like this:
Also, I’d like to restore the initial arrangement of the data set when user desired. Here is the result:
Also, to translate when a different movie is isolated:
Finally, I think another indication of popularity of a certain move is how long people borrow them. To do this, I want to figure out how long people keep a particular movie during a particular month. It’s unclear how to do this in sql, so I just grabbed all the borrowing record from the dataset, and then save the result to a .csv file, and then use python to compute the average time people borrowing the movie. The query part for this is easy:
SELECT title, cout, cin from spl_2016.inraw
Where title = “Star Trek Into Darkness” AND year(cout) > 2011
After this, I save the result to a csv file, and use the following python scripts to compute the average borrowing time for each movie during a particular month. It can be easily done by compute cin  count and aggregate them to each month.
To map how long the movie is borrowed into the visualization, I decided to color map them to the color of each bar. Here is the final result after color mapping the average borrowing time for a movie:
The darker the color, means people borrow the movie longer during that month.
Some analysis:
We can see generally if more movies are borrowed each month, people tend to keep them shorter. It’s however unclear how the popularity of each movie are related to each other, as the distribution of each movie over the month seems to be uncorrelated.
Code and Data:
Usage: after the programm is running, first press "r" to reset the layout. Then, press "1" , "2", "3", "4" to isloate individual movie. Press "s" to shuffle the arrangement of the movies.
I’m interested in the popularity of four scifi movies: Star Trek Into Darkness, Cloud Atlas, Gravity and Prometheus. So I’d like to create a visualization which shows the popularity of those four movies over time. To measure the popularity, I divide the time into months, and retrieve how many times the movie is borrowed in one month. The more times the movie is borrowed, the more popular they are. I decide to use bar graph to visualize the result.
To query the dataset, I use the following scripts:
Code: Select all
SELECT YEAR(cout) AS Year, MONTH(cout) AS Month,
SUM(CASE
WHEN title = 'Star Trek Into Darkness' Then 1
ELSE 0 END) AS 'Star Trek Into Darkness',
SUM(CASE
WHEN title = 'Cloud Atlas' Then 1
ELSE 0 END) AS 'Cloud Atlas',
SUM(CASE
WHEN title = 'gravity' Then 1
ELSE 0 END) AS 'gravity',
SUM(CASE
WHEN title = 'prometheus' Then 1
ELSE 0 END) AS 'prometheus'
FROM spl_2016.inraw
WHERE
(itemtype = 'acdvd' OR itemtype = 'acvhs')
AND YEAR(cout) >= '2011'
GROUP BY MONTH(cout), YEAR(cout)
ORDER BY YEAR(cout) , MONTH(cout)

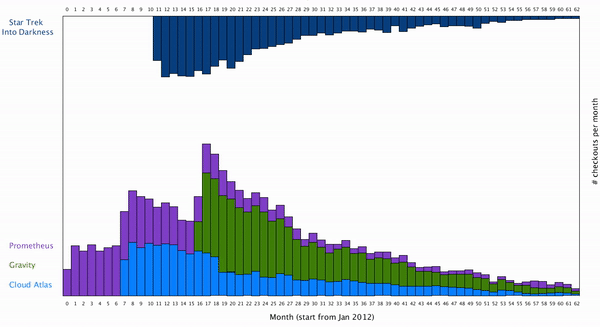

Here is my initial bar graph:
After this, in order to figure out the relationship of each dataset, I think It may be better to show
the trend of individual movie, compared to the rest of the movie. To do this, I think maybe it’s better to show the trend of an individual movie on the top of the screen, and the show the trend of rest of three movies in the bottom.
This way the users can isolate the individual movie they are interested in.
To create a smooth transition between the movie from which all the movies are cluster together, to a stage where one movie is isolated, I want to create a smooth animation for this. To do this, we can think the individual rectangles of bar graph move vertically along y axis. The result looks like this:
Also, I’d like to restore the initial arrangement of the data set when user desired. Here is the result:
Also, to translate when a different movie is isolated:
Finally, I think another indication of popularity of a certain move is how long people borrow them. To do this, I want to figure out how long people keep a particular movie during a particular month. It’s unclear how to do this in sql, so I just grabbed all the borrowing record from the dataset, and then save the result to a .csv file, and then use python to compute the average time people borrowing the movie. The query part for this is easy:
SELECT title, cout, cin from spl_2016.inraw
Where title = “Star Trek Into Darkness” AND year(cout) > 2011
After this, I save the result to a csv file, and use the following python scripts to compute the average borrowing time for each movie during a particular month. It can be easily done by compute cin  count and aggregate them to each month.
Code: Select all
import csv
from datetime import datetime
from datetime import timedelta
import numpy as np
fileName = "./star_trek.csv"
cin = []
cout = []
def computeDiffInMonth(date1, date2):
yearDiff = date1.year  date2.year
monthDiff = date1.month  date2.month
return yearDiff*12 + monthDiff
with open(fileName, 'rb') as csvfile:
spamreader = csv.reader(csvfile, delimiter=',')
row1 = next(spamreader) # thrown away first row.
for row in spamreader:
cout.append(row[1])
cin.append(row[2])
cinP = []
coutP = []
for i in xrange(0, len(cin)):
cinP.append(datetime.strptime(cin[i], '%Y%m%d %H:%M:%S'))
coutP.append(datetime.strptime(cout[i], '%Y%m%d %H:%M:%S'))
BuckStart = datetime.strptime("20120101 12:00:00", '%Y%m%d %H:%M:%S')
BuckEnd = datetime.strptime("20180101 12:00:00", '%Y%m%d %H:%M:%S')
#print (BuckStart)
FirstCout = min(coutP)
#print (FirstCout)
totalBucket = computeDiffInMonth(BuckEnd, BuckStart)
#print (totalBucket)
bucketList = []
averageBorrowInDays = np.zeros([totalBucket])
for i in xrange(0, totalBucket):
TimeDiffList = []
bucketList.append(TimeDiffList)
for i in xrange(0, len(coutP)):
diffM = computeDiffInMonth(coutP[i], BuckStart)
bucketList[diffM].append(cinP[i]  coutP[i])
totalRecord = np.zeros([totalBucket])
for i in xrange(0, totalBucket):
numRecords = len(bucketList[i])
totalRecord[i] = numRecords
averageT = 0
#if (numRecords != 0):
# averageT = min(bucketList[i]).days
for Tdiff in bucketList[i]:
averageT += Tdiff.days
if (numRecords != 0):
averageT /= numRecords
#ri, averageT)
averageBorrowInDays[i] = averageT
fout = open("./Star_trek_AveDays.txt", "w")
for i in xrange(0, totalBucket):
fout.write("%d\n" % (int)(averageBorrowInDays[i]))
fout.close()
The darker the color, means people borrow the movie longer during that month.
Some analysis:
We can see generally if more movies are borrowed each month, people tend to keep them shorter. It’s however unclear how the popularity of each movie are related to each other, as the distribution of each movie over the month seems to be uncorrelated.
Code and Data:
Usage: after the programm is running, first press "r" to reset the layout. Then, press "1" , "2", "3", "4" to isloate individual movie. Press "s" to shuffle the arrangement of the movies.
 Attachments

 Qiaodong_hw2.zip
 (49.96 KiB) Downloaded 41 times
Last edited by qiaodong on Thu Feb 01, 2018 6:47 am, edited 1 time in total.

 Posts: 4
 Joined: Fri Jan 19, 2018 11:09 am
Re: 2D Frequency Pattern Visualization
