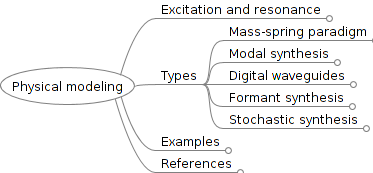

Physical modeling
hide
Excitation and resonance
leaf
Physical modeling is a the construction of a system that resonates when it is excited (very much like a real intrument)
leaf
Output is the system's state sampled at a particular location
hide
Types
hide

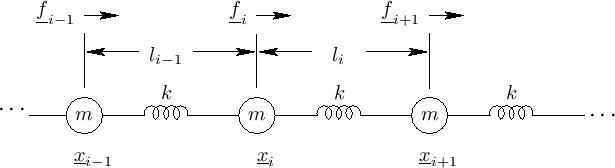

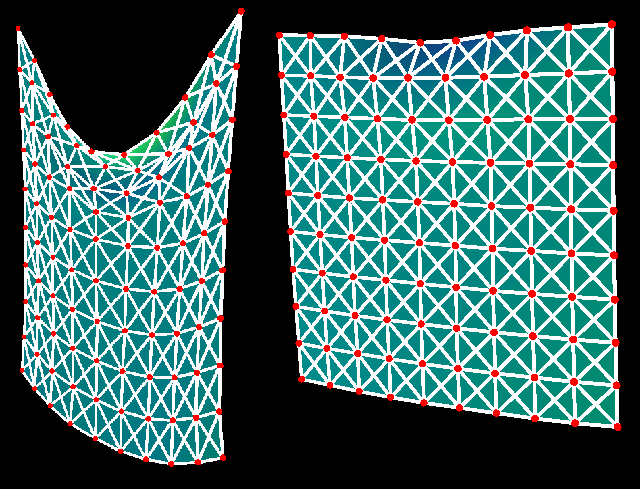

Mass-spring paradigm
leaf

leaf

hide
Modal synthesis
leaf
A sound object is modeled as a collection of vibrating sub-structures
leaf
Less structures to compute than the mass-spring system
hide
Each substructure has
leaf
a set of frequencies and damping coefficients for the substructure's resonating nodes
leaf
coordinates describing the mode's shape
leaf
Allows combining different sub-structures together to create new instruments
leaf
Can be estimated and computed from geometric and material modeling
leaf
Often calculated from measurements of objects
leaf
Often modeled in with biquad resonators
hide
Digital waveguides
hide

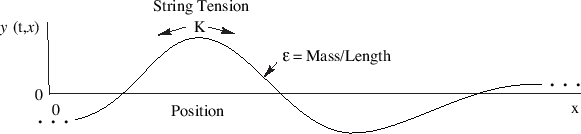

Discrete Realization of the 1D wave equation,
leaf
A superposition of a right-going and left going wave
leaf
en.wikipedia.org > Wiki > Digital waveguide synthesis User Link
leaf

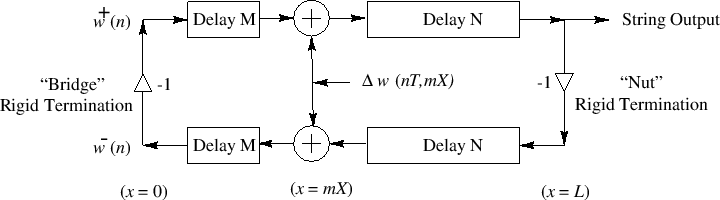

Digital delay lines to model the traveling of waves
leaf
Digital filters to represent the losses at the string and the boundaries
leaf
Often non-linear elements are added
leaf
Membranes can be modeled as 2d waveguide meshes and Reverb can be modeles as 3D waveguide meshes
leaf
Julius O. Smith
hide
Banded waveguides
leaf
Georg Essl and Perry Cook
leaf
Each frequency band is modeled using a different waveguide, to model the frequency dependent behavior of propagation and resonance of objects
hide

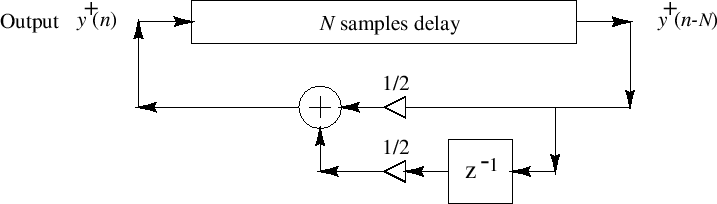

Karplus-Strong algorithm
leaf
Fill a filtered delay line with random numbers
leaf

leaf

hide
Jaffe-Smith extension
leaf
Greater control of decay time
leaf
Improves tuning problems
leaf
https://ccrma.stanford.edu/~jos/pasp/Extended_Karplus_Strong_Algorithm.html User Link
hide
Model the movement of energy across vibrating bodies (strings/tubes)
leaf

leaf

hide
Formant synthesis
leaf
Generally a source-filter model
hide
Like voiced speech
leaf
The source is the glottal pulse train
leaf
The filter is the vocal tract (tounge and mouth)
hide
FOF/ VOSIM
leaf
The pulse+filter is simplified by producing time decaying sinusoids
leaf
Used for singing voice
hide
Stochastic synthesis
leaf
Modelling processes which are random
leaf
e.g. seeds in a maraca, footsteps on sand
leaf
Generally using modal synthesis or granular synthesis
hide
Examples
hide
Guitar
leaf
https://soundcloud.com/spicyguitar User Link
leaf
spicyguitar.com User Link
leaf
acoustics.hut.fi > Demos User Link
hide
Keyboards
leaf
applied-acoustics.com > Modelingcollection > Overview User Link
leaf
pianoteq User Link
leaf
www.physispiano.com
hide
Woodwinds
leaf
https://ccrma.stanford.edu/software/stk/ User Link
leaf
Percussion
hide
Orchestral
leaf
synful.com User Link
hide
References
leaf
https://ccrma.stanford.edu/~jos/pasp/pasp.html User Link
leaf
Good intro in C. Roads "The Computer Music Tutorial"
leaf
Perry Cook. Real Sound Synthesis for Interactive Applications
