Buzz< Tv, Ts > Class Template Reference

Base class for producing band-limited waveforms. More...

#include <Oscillator.h>

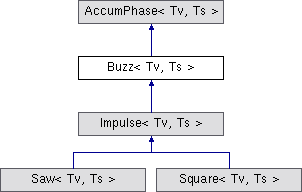

Inheritance diagram for Buzz< Tv, Ts >:

List of all members.

Public Member Functions
	Buzz (Tv frq=440, Tv phase=0, Tv harmonics=8)
void	antialias ()
	Adjust number of harmonics to prevent aliasing.
void	harmonics (Tv num)
	Set number of harmonics.
void	harmonicsMax ()
	Set number of harmonics to fill Nyquist range.
Tv	operator() ()
	Returns next sample of all harmonic impulse.
Tv	odd ()
	Returns next sample of odd harmonic impulse.
Tv	saw (Tv intg=0.997)
	Returns next sample of saw waveform.
Tv	square (Tv intg=0.997)
	Returns next sample of square waveform.
Tv	maxHarmonics ()
	Get number of harmonics below Nyquist based on current settings.
Tv	nextPhase ()
	Generate next sample. Stored phase is post-incremented.
Tv	nextPhase (Tv frqOffset)
	Generate next sample with a frequency offset.
void	freq (Tv v)
	Set frequency.
Tv	freq ()
	Get frequency.
void	period (Tv v)
	Set period length.
Tv	period ()
	Get period.
void	phase (Tv v)
	Set phase from [0, 1) of one period.
Tv	phase ()
	Get normalized phase in [0, 1)
void	phaseAdd (Tv v)
	Add value to unit phase.

---

Detailed Description

template<class Tv = gam::real, class Ts = Synced>
class gam::Buzz< Tv, Ts >

Base class for producing band-limited waveforms.

This produces a finite sum of equi-amplitude cosine waves that approach the shape of a periodic impulse train. Due to numerical issues, this generator should not be used for producing very low frequency modulation signals. For that purpose, it is better to use the LFO class.

---

Constructor & Destructor Documentation

Buzz	(	Tv	frq = 440,
		Tv	phase = 0,
		Tv	harmonics = 8
	)

Parameters:

[in]	frq	Frequency
[in]	phase	Phase in [0, 1)
[in]	harmonics	Number of harmonics

---

The documentation for this class was generated from the following file:

• /Users/ljp/code/gamma/trunk/Gamma/Oscillator.h
