Delay< Tv, Si, Ts > Class Template Reference

Variable length delay-line. More...

#include <Delay.h>

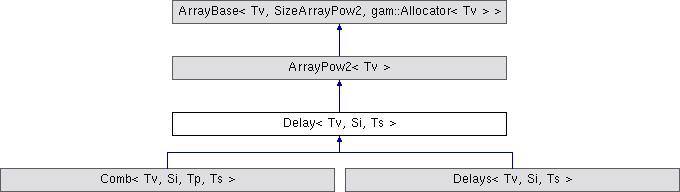

Inheritance diagram for Delay< Tv, Si, Ts >:

List of all members.

Public Member Functions
	Delay ()
	Default constructor. Does not allocate memory.
	Delay (float delay)
	Delay (float maxDelay, float delay)
void	delay (float v)
	Set delay length.
void	delayUnit (float u)
	Set delay as (0, 1) of buffer size.
void	freq (float v)
	Set natural frequency (1/delay())
void	ipolType (ipl::Type v)
	Set interpolation type.
void	maxDelay (float v)
	Set maximum delay length.
void	zero ()
	Sets all elements to zero.
Tv	operator() (const Tv &v)
	Returns next filtered value.
Tv	operator() () const
	Reads delayed element from buffer.
Tv	read (float ago)
	Returns element 'ago' units ago.
void	write (const Tv &v)
	Writes element into buffer. Tap is post-incremented.
void	writePre (const Tv &v)
	Writes element into buffer. Tap is pre-incremented.
float	delay () const
	Get current delay length.
uint32_t	delayIndex (uint32_t delay) const
	Get index of delayed element.
float	delayUnit () const
	Get unit delay (to max delay)
float	freq () const
	Get frequency of delay line.
uint32_t	indexBack () const
	Get index of backmost element.
float	maxDelay () const
	Get maximum delay length units.
uint32_t	fracBits () const
	Returns number of bits in fraction (32 - bits())
float	fraction (uint32_t phase) const
	Get floating-point fractional part of fixed-point phase.
uint32_t	index (uint32_t phase) const
	Get integer part of fixed-point phase.
uint32_t	log2Size () const
	Returns log base-2 of the number of array elements.
uint32_t	oneIndex () const
	Returns 32-bit phase increment for one element index.
const Tv &	atPhase (uint32_t phase) const
	Get element at truncated fixed-point phase.
void	putPhase (uint32_t phase, Tvv)
	Set element at truncated fixed point phase.
Tv &	operator[] (uint32_t i)
	Get write reference to element.
const Tv &	operator[] (uint32_t i) const
	Get read-only reference to element.
ArrayBase &	assign (const Tv &v)
	Sets all elements to value.
ArrayBase &	assign (const Tv &v, uint32_t end, uint32_t stride=1, uint32_t start=0)
	Sets linear slice of elements to value.
Tv *	elems ()
	Get writable pointer to elements.
const Tv *	elems () const
	Get read-only pointer to elements.
uint32_t	size () const
	Returns number of elements in array.
void	clear ()
	Destroys all elements and frees memory.
void	own ()
	Ensures ownership of elements.
bool	isSoleOwner () const
	Returns true if we are the sole owner of data internally allocated.
void	resize (uint32_t newSize, const Tv &c=Tv())
	Resizes number of elements in array.
void	source (ArrayBase< Tv, SizeArrayPow2, gam::Allocator< Tv > > &src)
	Sets source of array elements to another array.
void	source (Tv *src, uint32_t size)
	Sets source of array elements to another array.
Static Public Member Functions
static int	references (Tv *m)
	Returns number of pointers to memory address being managed.

---

Detailed Description

template<class Tv = gam::real, template< class > class Si = ipl::Linear, class Ts = Synced>
class gam::Delay< Tv, Si, Ts >

Variable length delay-line.

Template Parameters:

Tv	value (sample) type
Tp	parameter type
Si	interpolation strategy
Ts	sync type

---

Constructor & Destructor Documentation

Delay

(

float

delay

)

Parameters:

[in]

delay

Delay length The size of the delay buffer will be the smallest possible power of two.

Delay	(	float	maxDelay,
		float	delay
	)

Parameters:

[in]	maxDelay	Maximum delay length
[in]	delay	Delay length The size of the delay buffer will be the smallest possible power of two.

---

Member Function Documentation

ArrayBase& assign	(	const Tv &	v,
		uint32_t	end,
		uint32_t	stride = 1,
		uint32_t	start = 0
	)		[inherited]

Sets linear slice of elements to value.

Parameters:

[in]	v	value to be copied as new content
[in]	end	end index (exclusive)
[in]	stride	index stride amount
[in]	start	start index (inclusive)

void own

(

)

[inherited]

Ensures ownership of elements.

If the array is not already the sole owner, new memory is allocated and the previously referenced array elements are copied.

void resize	(	uint32_t	newSize,
		const Tv &	c = T()
	)		[inherited]

Resizes number of elements in array.

If the new size is less than the old size, then elements are truncated. If the new size is greater than the old size, then the argument value is copied into the additional elements.

---

The documentation for this class was generated from the following file:

• /Users/ljp/code/gamma/trunk/Gamma/Delay.h
