Osc< Tv, Sipol, Stap, Ts > Class Template Reference

Tabulated function oscillator. More...

#include <Oscillator.h>

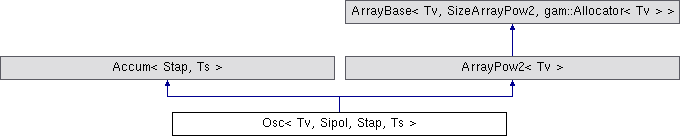

Inheritance diagram for Osc< Tv, Sipol, Stap, Ts >:

List of all members.

Public Member Functions
	Osc (float frq=440, float phs=0, uint32_t size=512)
	Constructor that allocates an internal table.
	Osc (float frq, float phs, ArrayPow2< Tv > &src)
	Constructor that references an external table.
Tv	operator() ()
	Generate next sample.
Tv	val () const
	Get current value.
Osc &	addSine (double cycles, double amp=1, double phs=0)
	Add sine to table.
void	zero ()
	Zero table elements.
void	freq (float v)
	Set frequency.
float	freq () const
	Get frequency.
void	phase (float v)
	Set phase from [0, 1) of one period.
float	phase () const
	Get phase in [0, 1)
void	phaseMax ()
	Set phase to maximum value.
void	phaseAdd (float v)
	Add value to phase [0, 1)
void	period (float v)
	Set period length.
void	reset ()
	Reset phase accumulator.
bool	done () const
	Returns true if tap is done.
uint32_t	freqI () const
	Get fixed-point frequency.
float	freqUnit () const
	Get frequency in [0, 1)
uint32_t	phaseI () const
	Get fixed-point phase.
uint32_t	cycle ()
	Returns 0x80000000 on phase wrap, 0 otherwise.
uint32_t	nextPhase ()
	Increment phase and return pre-incremented phase.
uint32_t	nextPhasePost ()
	Increment phase and return post-incremented phase.
uint32_t	cycles ()
	Get 1 to 0 transitions of all accumulator bits.
uint32_t	fracBits () const
	Returns number of bits in fraction (32 - bits())
float	fraction (uint32_t phase) const
	Get floating-point fractional part of fixed-point phase.
uint32_t	index (uint32_t phase) const
	Get integer part of fixed-point phase.
uint32_t	log2Size () const
	Returns log base-2 of the number of array elements.
uint32_t	oneIndex () const
	Returns 32-bit phase increment for one element index.
const Tv &	atPhase (uint32_t phase) const
	Get element at truncated fixed-point phase.
void	putPhase (uint32_t phase, Tvv)
	Set element at truncated fixed point phase.
Tv &	operator[] (uint32_t i)
	Get write reference to element.
const Tv &	operator[] (uint32_t i) const
	Get read-only reference to element.
ArrayBase &	assign (const Tv &v)
	Sets all elements to value.
ArrayBase &	assign (const Tv &v, uint32_t end, uint32_t stride=1, uint32_t start=0)
	Sets linear slice of elements to value.
Tv *	elems ()
	Get writable pointer to elements.
const Tv *	elems () const
	Get read-only pointer to elements.
uint32_t	size () const
	Returns number of elements in array.
void	clear ()
	Destroys all elements and frees memory.
void	own ()
	Ensures ownership of elements.
bool	isSoleOwner () const
	Returns true if we are the sole owner of data internally allocated.
void	resize (uint32_t newSize, const Tv &c=Tv())
	Resizes number of elements in array.
void	source (ArrayBase< Tv, SizeArrayPow2, gam::Allocator< Tv > > &src)
	Sets source of array elements to another array.
void	source (Tv *src, uint32_t size)
	Sets source of array elements to another array.
Static Public Member Functions
static int	references (Tv *m)
	Returns number of pointers to memory address being managed.

---

Detailed Description

template<class Tv = gam::real, template< class > class Sipol = ipl::Linear, class Stap = tap::Wrap, class Ts = Synced>
class gam::Osc< Tv, Sipol, Stap, Ts >

Tabulated function oscillator.

This generator produces a periodic signal by reading values from a table. Its advantage over other types of waveform generators is that it can produce arbitrary periodic waveforms with a fixed computational cost. Its main weakness is lack of parametric control over the waveform timbre. This generator is named after the generator of the same name in the MUSIC series of compilers. [Mathews, M. (1969). The Technology of Computer Music. The M.I.T. Press, Boston.]

Template Parameters:

Tv	table element type
Sipol	interpolation strategy
Stap	table reading strategy

---

Constructor & Destructor Documentation

Osc	(	float	frq = 440,
		float	phs = 0,
		uint32_t	size = 512
	)

Constructor that allocates an internal table.

Parameters:

[in]	frq	Frequency
[in]	phs	Phase in [0, 1)
[in]	size	Size of table (actual number is power of 2 ceiling)

Osc	(	float	frq,
		float	phs,
		ArrayPow2< Tv > &	src
	)

Constructor that references an external table.

Parameters:

[in]	frq	Frequency
[in]	phs	Phase in [0, 1)
[in]	src	A table to use as a reference

---

Member Function Documentation

Osc& addSine	(	double	cycles,
		double	amp = 1,
		double	phs = 0
	)

Add sine to table.

Parameters:

[in]	cycles	number of cycles
[in]	amp	amplitude
[in]	phs	unit phase, [0, 1)

ArrayBase& assign	(	const Tv &	v,
		uint32_t	end,
		uint32_t	stride = 1,
		uint32_t	start = 0
	)		[inherited]

Sets linear slice of elements to value.

Parameters:

[in]	v	value to be copied as new content
[in]	end	end index (exclusive)
[in]	stride	index stride amount
[in]	start	start index (inclusive)

uint32_t cycle

(

)

[inherited]

Returns 0x80000000 on phase wrap, 0 otherwise.

The return value can be used as a bool. It's an integer because it saves a conditional check converting to a bool.

void own

(

)

[inherited]

Ensures ownership of elements.

If the array is not already the sole owner, new memory is allocated and the previously referenced array elements are copied.

void resize	(	uint32_t	newSize,
		const Tv &	c = T()
	)		[inherited]

Resizes number of elements in array.

If the new size is less than the old size, then elements are truncated. If the new size is greater than the old size, then the argument value is copied into the additional elements.

---

The documentation for this class was generated from the following file:

• /Users/ljp/code/gamma/trunk/Gamma/Oscillator.h
