Ring< T, A > Class Template Reference

Ring buffer. More...

#include <Containers.h>

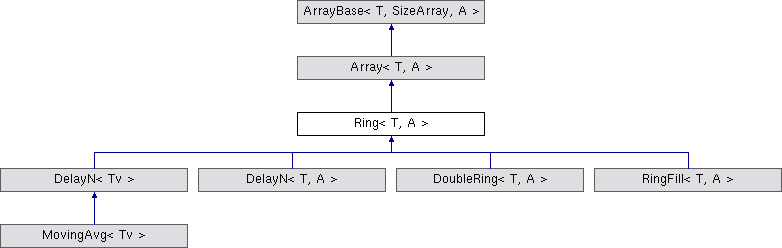

Inheritance diagram for Ring< T, A >:

List of all members.

Public Member Functions
	Ring (uint32_t size=0, const T &value=T())
T &	readBack ()
	Returns reference to backmost (oldest) element.
T &	readFront ()
	Returns reference to frontmost (newest) element.
T &	read (uint32_t ago)
	Returns reference to element 'ago' indices behind front.
void	copy (T *dst, uint32_t len, uint32_t delay) const
	Copies len elements starting from element pos() - delay into dst.
void	copyUnwrap (T *dst, uint32_t len) const
	Copy elements starting from last in into dst unwrapping from ring.
uint32_t	pos () const
	Return absolute index of frontmost (newest) element.
bool	reachedEnd () const
	Returns whether the last element written was at the end of the array.
uint32_t	indexBack () const
	Returns absolute index of backmost (oldest) element.
uint32_t	indexFront () const
	Returns absolute index of frontmost (newest) element.
uint32_t	indexPrev (uint32_t ago) const
	Returns absolute index of a previously written element.
void	operator() (const T &v)
	Write new element.
void	pos (uint32_t index)
	Set absolute buffer index of writer.
void	reset ()
	Reset write position to beginning.
void	writeClip (const T &v)
	Writes element unless at end of buffer.
T &	operator[] (uint32_t i)
	Get write reference to element.
const T &	operator[] (uint32_t i) const
	Get read-only reference to element.
ArrayBase &	assign (const T &v)
	Sets all elements to value.
ArrayBase &	assign (const T &v, uint32_t end, uint32_t stride=1, uint32_t start=0)
	Sets linear slice of elements to value.
T *	elems ()
	Get writable pointer to elements.
const T *	elems () const
	Get read-only pointer to elements.
uint32_t	size () const
	Returns number of elements in array.
void	clear ()
	Destroys all elements and frees memory.
void	own ()
	Ensures ownership of elements.
bool	isSoleOwner () const
	Returns true if we are the sole owner of data internally allocated.
void	resize (uint32_t newSize, const T &c=T())
	Resizes number of elements in array.
void	source (ArrayBase< T, SizeArray, A > &src)
	Sets source of array elements to another array.
void	source (T *src, uint32_t size)
	Sets source of array elements to another array.
Static Public Member Functions
static int	references (T *m)
	Returns number of pointers to memory address being managed.

---

Detailed Description

template<class T, class A = gam::Allocator<T>>
class gam::Ring< T, A >

Ring buffer.

---

Constructor & Destructor Documentation

Ring	(	uint32_t	size = 0,
		const T &	value = T()
	)		[explicit]

Parameters:

[in]	size	Number of elements in ring.
[in]	value	Initial value of all elements.

---

Member Function Documentation

ArrayBase& assign	(	const T &	v,
		uint32_t	end,
		uint32_t	stride = 1,
		uint32_t	start = 0
	)		[inherited]

Sets linear slice of elements to value.

Parameters:

[in]	v	value to be copied as new content
[in]	end	end index (exclusive)
[in]	stride	index stride amount
[in]	start	start index (inclusive)

void own

(

)

[inherited]

Ensures ownership of elements.

If the array is not already the sole owner, new memory is allocated and the previously referenced array elements are copied.

void resize	(	uint32_t	newSize,
		const T &	c = T()
	)		[inherited]

Resizes number of elements in array.

If the new size is less than the old size, then elements are truncated. If the new size is greater than the old size, then the argument value is copied into the additional elements.

---

The documentation for this class was generated from the following file:

• /Users/ljp/code/gamma/trunk/Gamma/Containers.h
