glv::TRect< T > Class Template Reference

Rectangle shape. More...

#include <glv_rect.h>

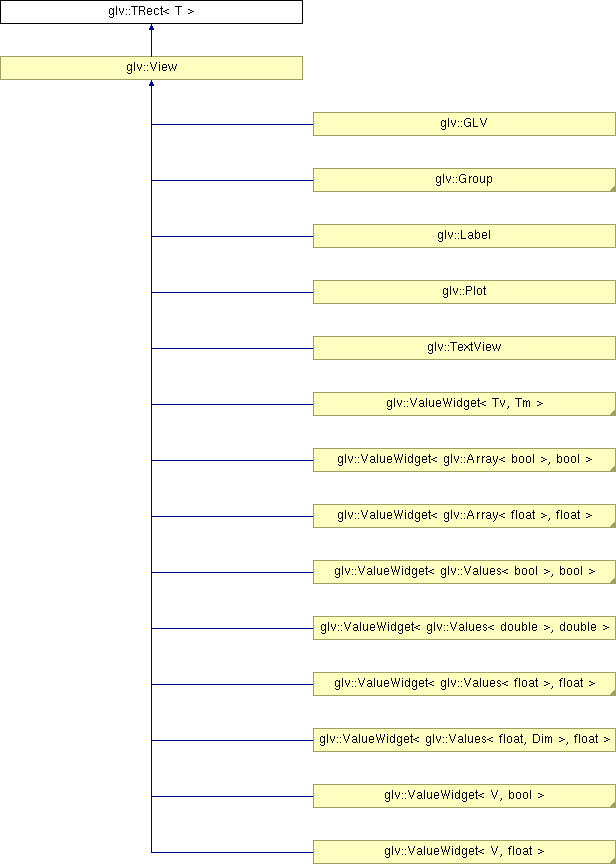

Inheritance diagram for glv::TRect< T >:

List of all members.

Public Member Functions
	TRect (T extent)
	Construct from square extent with position set to (0,0).
	TRect (T width, T height)
	Construct from width and height with position set to (0,0).
	TRect (T left, T top, T width, T height)
	TRect (const TRect &other)
void	extent (T v)
	Set extent to be square.
void	extent (T w, T h)
	Set extent.
void	fitSquare (T v)
	Set extent to fit in square.
void	fixNegativeExtent ()
	Fixes negative width or height to be positive.
void	insetFrom (const TRect< T > &from, T inset)
	Make TRect relative inset from 'from'.
void	pos (T left, T top)
	Set left-top position.
void	posAdd (T x, T y)
	Translate by [x, y] units.
void	posRelTo (const TRect< T > &r, float rxf, float ryf, float xf, float yf, float x=0, float y=0)
	Position myself relative to another rect.
void	resizeLeftTo (T v)
	Resize by moving left edge to value.
void	resizeTopTo (T v)
	Resize by moving top edge to value.
void	resizeRightTo (T v)
	Resize by moving right edge to value.
void	resizeBottomTo (T v)
	Resize by moving bottom edge to value.
void	resizeEdgesBy (T v)
	Resize by moving edges by value.
void	set (T left, T top, T width, T height)
	Set components.
void	set (const TRect< T > &r)
	Set components from other TRect.
void	transpose ()
	Swaps width and height.
void	left (T v)
	Set left position.
void	top (T v)
	Set top position.
void	width (T v)
	Set width.
void	height (T v)
	Set height.
void	bottom (T v)
	Set bottom edge preserving height.
void	right (T v)
	Set right edge preserving width.
T	left () const
	Get left edge position.
T	top () const
	Get top edge position.
T	width () const
	Get width.
T	height () const
	Get height.
T	right () const
	Get right edge position.
T	bottom () const
	Get bottom edge position.
T	area () const
	Returns area (w x h).
void	center (T &x, T &y) const
	Gets center point.
T	centerX () const
	Returns center along x axis.
T	centerY () const
	Returns center along y axis.
bool	containsPoint (T x, T y) const
	Returns whether the point is inside the TRect.
void	intersection (const TRect< T > &check, TRect< T > &intersection) const
	Calculates the intersection of the two Rects.
bool	intersects (const TRect< T > &rect) const
	Returns whether the two Rects intersect.
bool	isVertical () const
	Returns true if h > w, false otherwise.
bool	withinXBounds (T xmin, T xmax) const
	Returns whether the TRect is within the x range.
bool	withinYBounds (T ymin, T ymax) const
	Returns whether the TRect is within the y range.
virtual void	onResize (T dx, T dy)
	Called when the width or height change. Changes in extent are passed in.
void	print (FILE *fp=stdout)
	write about TRect to a file
Public Attributes
T	l
	Left edge position.
T	t
	Top edge position.
T	w
	Width.
T	h
	Height.

---

Detailed Description

template<class T>
class glv::TRect< T >

Rectangle shape.

Knows how to calculate useful things such as centre, intersection areas with other rects, etc.

---

Constructor & Destructor Documentation

template<class T>

TEM glv::TRect< T >::TRect

(

T

extent

)

Construct from square extent with position set to (0,0).

Parameters:

[in]

extent

initial width and height

template<class T>

TEM glv::TRect< T >::TRect	(	T	width,
		T	height
	)

Construct from width and height with position set to (0,0).

Parameters:

[in]	width	initial width
[in]	height	initial height

template<class T>

TEM glv::TRect< T >::TRect	(	T	left,
		T	top,
		T	width,
		T	height
	)

Parameters:

[in]	left	initial left edge position
[in]	top	initial top edge position
[in]	width	initial width
[in]	height	initial height

template<class T>

TEM glv::TRect< T >::TRect

(

const TRect< T > &

other

)

Parameters:

[in]

other

other rectangle to set geometry from

---

Member Function Documentation

template<class T>

TEM void glv::TRect< T >::posRelTo	(	const TRect< T > &	r,
		float	rxf,
		float	ryf,
		float	xf,
		float	yf,
		float	x = 0,
		float	y = 0
	)			[inline]

Position myself relative to another rect.

rxf and ryf determine the fractional position along the source r. xf and xy determine the fractional position along this rect. x and y are absolute offsets.

---

The documentation for this class was generated from the following file:

• /Users/ljp/code/glv-svn/trunk/include/glv_rect.h
