Number editor with individually controllable digits. More...

#include <glv_textview.h>

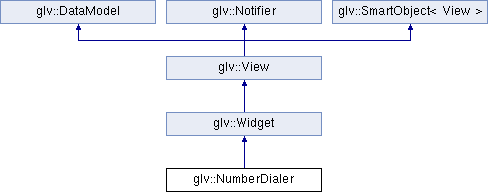

Inheritance diagram for glv::NumberDialer:

Public Member Functions
	NumberDialer (const Rect &r, int numInt, int numFrac)
	NumberDialer (const Rect &r, int numInt, int numFrac, double max, double min)
double	getValue () const
	Get value.
NumberDialer &	padding (space_t v)
	Set padding amount from top and bottom.
NumberDialer &	interval (double max, double min=0)
	Set max and min output range. Values larger than displayable range will be clipped.
NumberDialer &	resize (int numInt, int numFrac)
	Set number of digits in integer and fraction parts.
NumberDialer &	showSign (bool v)
	Set whether to show sign.
NumberDialer &	setValue (double v)
	Set value.
virtual const char *	className () const
	Get class name.
virtual void	onDraw (GLV &g)
	Drawing callback.
virtual bool	onEvent (Event::t e, GLV &g)
	Event callback to be called after those in callback list.
Protected Member Functions
int	size () const
	Get total number of elements.

Detailed Description

Number editor with individually controllable digits.

Each digit acts like a slider that can be scrolled up or down to increase or decrease the value of the number. The keyboard can also be used to edit the currently focused digit. The sign on the left side can be toggled by clicking it. The digits are scaled according to the dimensions of the view. The padding amount determines the spacing around the digits. For best looking characters use a Rect dimension ns x s where 'n' is the number of digits and 's' is the character size plus padding amount.

Constructor & Destructor Documentation

glv::NumberDialer::NumberDialer	(	const Rect &	r,
		int	numInt,
		int	numFrac
	)

Parameters:

`[in]`	r	Geometry
`[in]`	numInt	Number of places in integer part
`[in]`	numFrac	Number of places in fraction part

glv::NumberDialer::NumberDialer	(	const Rect &	r,
		int	numInt,
		int	numFrac,
		double	max,
		double	min
	)

Parameters:

`[in]`	r	Geometry
`[in]`	numInt	Number of places in integer part
`[in]`	numFrac	Number of places in fraction part
`[in]`	max	Maximum value
`[in]`	min	Minimum value

The documentation for this class was generated from the following files:

/Users/ljp/code/glv-svn/trunk/include/glv_textview.h
/Users/ljp/code/glv-svn/trunk/src/glv_textview.cpp
