The base class of all GUI elements. More...

#include <glv_core.h>

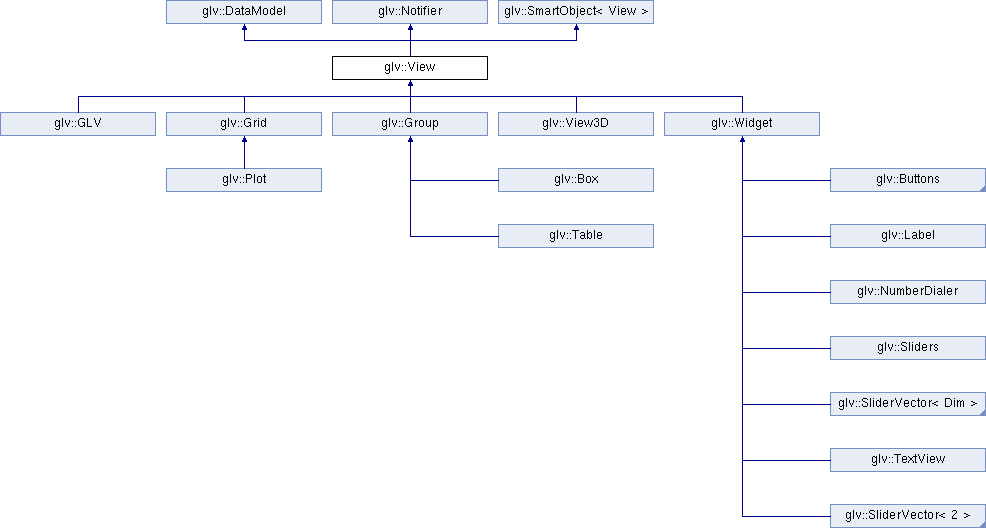

Inheritance diagram for glv::View:

Classes
struct	TraversalAction
	An action to be called when traversing the node tree. More...
Public Member Functions
	View (space_t left, space_t top, space_t width, space_t height, drawCallback cb=0)
	View (const Rect &rect=Rect(200, 200), Place::t anchor=Place::TL, drawCallback cb=0)
virtual const char *	className () const
	Get class name.
virtual void	onAnimate (double dsec, GLV &g)
	Animation callback.
virtual void	onDraw (GLV &g)
	Drawing callback.
virtual bool	onEvent (Event::t e, GLV &g)
	Event callback to be called after those in callback list.
virtual void	onResize (space_t dx, space_t dy)
	Resize callback.
virtual void	onDataModelSync ()
	Update internal values if different from attached model variables.
void	add (View &child)
	Add a child view to myself, and update linked lists.
void	add (View *child)
	Add a child view to myself, and update linked lists.
void	makeLastSibling ()
	Put self at end of sibling chain.
void	remove ()
	Remove myself from the parent view, and update linked lists.
void	traverseDepth (TraversalAction &action)
	Traverse tree depth-first applying an action at each node.
View &	operator<< (View &newChild)
	Add a child view to myself.
StyleColor &	colors () const
	Get style colors.
const std::string &	descriptor () const
	Get descriptor.
int	enabled (Property::t v) const
	Returns whether a property is set.
Font &	font ()
	Get font.
bool	hasCallback (Event::t e, eventCallback cb) const
	Returns whether a particular callback has been registered.
bool	hasCallbacks (Event::t e) const
	Returns whether there are callback(s) registered for a particular event.
const std::string &	name () const
	Get name.
int	numCallbacks (Event::t e) const
	Returns number of registered callbacks.
const View *	posAbs (space_t &al, space_t &at) const
	Computes absolute left-top position. Returns topmost parent view.
void	printDescendents () const
	Print tree of descendent Views to stdout.
bool	showing () const
	Returns whether View is being shown.
Style &	style () const
	Get style object.
const View *	toAbs (space_t &x, space_t &y) const
	Converts relative View x-y coordinates to absolute. Returns topmost parent view.
int	visible () const
	Returns model value(s) as string.
View &	anchor (space_t mx, space_t my)
	Set translation factors relative to parent resize amount.
View &	anchor (Place::t parentPlace)
	Set translation factors relative to parent resize amount.
void	addCallback (Event::t type, eventCallback cb)
	Push an event callback onto the back of the event callbacks list.
View &	disable (Property::t p)
	Disable property flag(s).
View &	enable (Property::t p)
	Enable property flag(s).
View &	property (Property::t p, bool v)
	Set property flag(s) to a specfic value.
View &	toggle (Property::t p)
	Toggle property flag(s).
View &	bringToFront ()
	Brings to front of parent View.
View &	cloneStyle ()
	Creates own copy of current style.
void	constrainWithinParent ()
	Force to remain in parent.
View *	findTarget (space_t &x, space_t &y)
	Returns View under these absolute coordinates or 0 if none.
void	fit ()
	Fit geometry so all children are visible.
void	focused (bool b)
	Set whether I'm focused.
void	move (space_t x, space_t y)
	Translate constraining within parent.
void	on (Event::t e, eventCallback cb=0)
	Set first callback for a specific event type.
void	removeCallback (Event::t e, eventCallback cb)
	Remove a callback for a given event (if found).
void	removeAllCallbacks (Event::t e)
	Detach all callbacks for a given event.
View &	descriptor (const std::string &v)
	Set descriptor, e.g. tooltip text.
View &	name (const std::string &v)
	Set identifier string.
View &	pos (Place::t p, space_t x, space_t y)
	Position a specific place at point (x,y).
View &	pos (Place::t p)
	Position a specific place at point (0,0).
View &	stretch (space_t mx, space_t my)
	Set parent resize stretch factors.
View &	style (Style *style)
	Set pointer to style.
View &	maximize ()
	Matches geometry to parent.
View &	restore ()
	Undoes maximization.
void	rectifyGeometry ()
	Correct geometry for proper display.
Public Attributes
View *	parent
	My parent view.
View *	child
	My first child (next to be drawn).
View *	sibling
	My next sibling view (drawn after all my children).
std::map< Event::t, eventCallbackList >	callbackLists
	Map of event callback sequences.
drawCallback	draw
	Drawing callback.

Detailed Description

The base class of all GUI elements.

Constructor & Destructor Documentation

glv::View::View	(	space_t	left,
		space_t	top,
		space_t	width,
		space_t	height,
		drawCallback	cb = `0`
	)

Parameters:

`[in]`	left	Initial left edge position
`[in]`	top	Initial top edge position
`[in]`	width	Initial width
`[in]`	height	Initial height
`[in]`	cb	Drawing callback

glv::View::View	(	const Rect &	rect = `Rect(200, 200)`,
		Place::t	anchor = `Place::TL`,
		drawCallback	cb = `0`
	)

Parameters:

`[in]`	rect	Rect geometry of View
`[in]`	anchor	Anchor place
`[in]`	cb	Drawing callback

Member Function Documentation

void glv::View::addCallback	(	Event::t	type,
		eventCallback	cb
	)

Push an event callback onto the back of the event callbacks list.

If the event callback already exists in the list, then it will be not be added. If multiple callbacks are registered for the same event type, then two types of prioritization take place. First, callbacks on the front of the list get called first. Second, if a callback returns false (for bubbling), then it cancels execution of any subsequent callbacks in the list.

View * glv::View::findTarget	(	space_t &	x,
		space_t &	y
	)

Returns View under these absolute coordinates or 0 if none.

The coordinates are modified to be relative to the returned View's.

View & glv::View::name ( const std::string & v )

Set identifier string.

The name should follow the same conventions as identifiers in C. I.e., it can be any string of letters, digits, and underscores, not beginning with a digit. If the argument is not a valid identifier, then the name will not be set.

int glv::View::visible ( ) const [inline]

Returns model value(s) as string.

Returns whether View visibility flag is set

The documentation for this class was generated from the following files:

/Users/ljp/code/glv-svn/trunk/include/glv_core.h
/Users/ljp/code/glv-svn/trunk/src/glv_view.cpp
