Base class for views having a regular grid of elements. More...
#include <glv_widget.h>

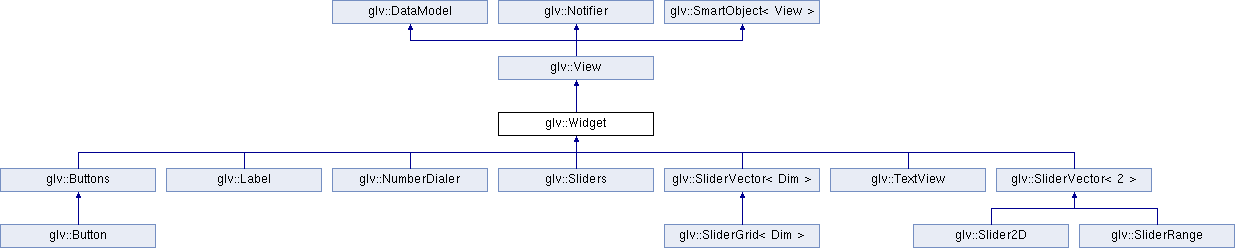

Inheritance diagram for glv::Widget:
Public Member Functions | |
| Widget (const Rect &r, space_t pad=3, bool momentary=false, bool mutExc=false, bool drawGrid=true) | |
| template<class T > | |
| T | getValue () const |
| Get selected element value type-casted to template parameter. | |
| template<class T > | |
| T | getValue (int i) const |
| Get element value at 1D index type-casted to template parameter. | |
| template<class T > | |
| T | getValue (int i1, int i2) const |
| Get element value at 2D index type-casted to template parameter. | |
| bool | isSelected (int x, int y) const |
| Returns whether this element coordinate is selected. | |
| const double & | max () const |
| Get maximum of value interval. | |
| const double & | min () const |
| Get minimum of value interval. | |
| double | mid () const |
| Get middle point of value interval. | |
| space_t | padding () const |
| Get element padding amount. | |
| int | selected () const |
| Get selected element index. | |
| int | selectedX () const |
| Get selected element x coordinate. | |
| int | selectedY () const |
| Get selected element y coordinate. | |
| int | size () const |
| Get total number of elements. | |
| int | sizeX () const |
| Get number of elements along x. | |
| int | sizeY () const |
| Get number of elements along y. | |
| template<class V > | |
| void | attachVariable (V &val, int i=0) |
| Attach a single variable at a specified index. | |
| Widget & | interval (const double &max, const double &min=0) |
| Set interval for numerical values. | |
| Widget & | padding (space_t v) |
| Set element padding amount. | |
| Widget & | select (int i) |
| Select element at 1D index. | |
| Widget & | select (int ix, int iy) |
| Select element at 2D index. | |
| template<class T > | |
| Widget & | setValue (const T &v, int i) |
| Set value at specified 1D index. | |
| template<class T > | |
| Widget & | setValue (const T &v, int ix, int iy) |
| Set value at specified 2D index. | |
| Widget & | setValueMax () |
| Set all values to maximum. | |
| Widget & | setValueMid () |
| Set all values to middle value. | |
| virtual void | onDataModelSync () |
| Update internal values if different from attached model variables. | |
| virtual const char * | className () const |
| Get class name. | |
Protected Member Functions | |
| virtual void | onDraw (GLV &g) |
| Drawing callback. | |
| virtual bool | onEvent (Event::t e, GLV &g) |
| Event callback to be called after those in callback list. | |
Detailed Description
Base class for views having a regular grid of elements.
Constructor & Destructor Documentation
| glv::Widget::Widget | ( | const Rect & | r, | |
| space_t | pad = 3, |
|||
| bool | momentary = false, |
|||
| bool | mutExc = false, |
|||
| bool | drawGrid = true | |||
| ) |
- Parameters:
-
[in] r geometry [in] pad padding from border [in] toggles whether the value elements toggle [in] mutExc whether value elements operate mutually exclusively [in] drawGrid whether to draw grid separater for multiple elements
The documentation for this class was generated from the following files:
- /Users/ljp/code/glv-svn/trunk/include/glv_widget.h
- /Users/ljp/code/glv-svn/trunk/src/glv_widget.cpp
