Impulse< Tv, Ts > Struct Template Reference

Band-limited impulse train. More...

#include <Oscillator.h>

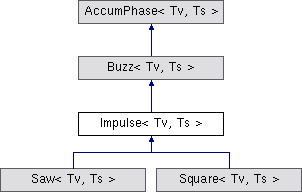

Inheritance diagram for Impulse< Tv, Ts >:

List of all members.

Public Member Functions
	Impulse (Tv frq=440, Tv phs=0)
void	freq (Tv v)
	Set frequency.
void	antialias ()
	Adjust number of harmonics to prevent aliasing.
void	harmonics (Tv num)
	Set number of harmonics.
void	harmonicsMax ()
	Set number of harmonics to fill Nyquist range.
Tv	operator() ()
	Returns next sample of all harmonic impulse.
Tv	odd ()
	Returns next sample of odd harmonic impulse.
Tv	saw (Tv intg=0.997)
	Returns next sample of saw waveform.
Tv	square (Tv intg=0.997)
	Returns next sample of square waveform.
Tv	maxHarmonics ()
	Get number of harmonics below Nyquist based on current settings.
Tv	nextPhase ()
	Generate next sample. Stored phase is post-incremented.
Tv	nextPhase (Tv frqOffset)
	Generate next sample with a frequency offset.
Tv	freq ()
	Get frequency.
void	period (Tv v)
	Set period length.
Tv	period ()
	Get period.
void	phase (Tv v)
	Set phase from [0, 1) of one period.
Tv	phase ()
	Get normalized phase in [0, 1)
void	phaseAdd (Tv v)
	Add value to unit phase.

---

Detailed Description

template<class Tv = gam::real, class Ts = Synced>
struct gam::Impulse< Tv, Ts >

Band-limited impulse train.

This produces a Fourier representation of an impulse train where the number of harmonics is adjusted automatically to prevent aliasing. Due to numerical issues, this generator should not be used for producing very low frequency modulation signals. For that purpose, it is better to use the LFO class.

---

Constructor & Destructor Documentation

Impulse	(	Tv	frq = 440,
		Tv	phs = 0
	)

Parameters:

[in]	frq	Frequency
[in]	phs	Phase, in [0, 1)

---

The documentation for this struct was generated from the following file:

• /Users/ljp/code/gamma/trunk/Gamma/Oscillator.h
