glv::Table Class Reference

Table class for doing rectangular layouts. More...

#include <glv_layout.h>

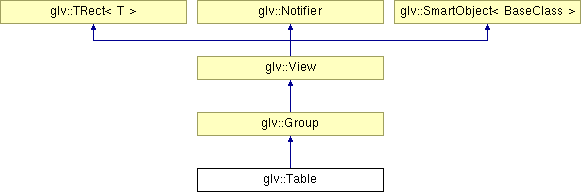

Inheritance diagram for glv::Table:

List of all members.

Public Member Functions
	Table (const char *arrangement, space_t padX=4, space_t padY=4, const Rect &r=Rect(0))
Table &	arrange ()
	Arrange child Views according to cell arrangement specification.
Table &	arrangement (const char *v)
	Set table cell arrangement.
const std::string &	arrangement () const
	Get arrangement string.

---

Detailed Description

Table class for doing rectangular layouts.

---

Constructor & Destructor Documentation

glv::Table::Table	(	const char *	arrangement,
		space_t	padX = 4,
		space_t	padY = 4,
		const Rect &	r = Rect(0)
	)

Parameters:

[in]	arrangement	Arrangement string (see arrangement())
[in]	padX	Padding in x-direction between cells
[in]	padY	Padding in y-direction between cells
[in]	r	Geometry

---

Member Function Documentation

Table & glv::Table::arrange

(

)

Arrange child Views according to cell arrangement specification.

If there are more children than the arrangement accounts for, then the arrangement string will copied the appropriate number of times.

Table & glv::Table::arrangement

(

const char *

v

)

Set table cell arrangement.

The arrangement string specifies where Views will lie in the table, the alignment within each cell, and how cells should span multiple columns and/or rows. The string cell alignment characters are:

	///	p ^ q     top-left     top-center     top-right
	///	< x >     center-left  center-center  center-right
	///	b v d     bottom-left  bottom-center  bottom-right

The string layout characters are:

	/// .         empty region
	/// -         span first leftward neighboring element rightward
	/// |         span first upward neighboring element downward
	/// ,         end of row

Views added as children will fill in the cells with an alignment specification starting at the top-left cell and then proceeding column-by-column, row-by-row.

The alignment code will set the View's anchor factors.

---

The documentation for this class was generated from the following files:

• /Users/ljp/code/glv-svn/trunk/include/glv_layout.h
• /Users/ljp/code/glv-svn/trunk/src/glv_layout.cpp
