glv::ValueWidget< Tv, Tm > Class Template Reference
Base class for a widget with a grid of values. More...
#include <glv_widget.h>

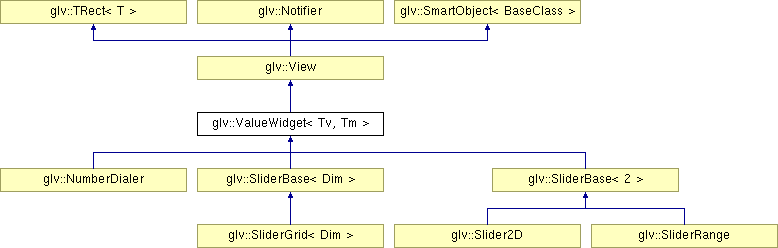

Inheritance diagram for glv::ValueWidget< Tv, Tm >:
Public Member Functions | |
| ValueWidget (const Rect &r, int nx, int ny, space_t pad, bool toggles, bool mutExc, bool drawGrid=true) | |
| bool | isSelected (int x, int y) const |
| Returns whether this element coordinate is selected. | |
| const Tm & | max () const |
| Get maximum of value interval. | |
| const Tm & | min () const |
| Get minimum of value interval. | |
| Tm | mid () const |
| Get middle point of value interval. | |
| space_t | padding () const |
| Get element padding amount. | |
| int | selected () const |
| Get selected element index. | |
| int | selectedX () const |
| Get selected element x coordinate. | |
| int | selectedY () const |
| Get selected element y coordinate. | |
| int | size () const |
| Get total number of elements. | |
| int | sizeX () const |
| Get number of elements along x. | |
| int | sizeY () const |
| Get number of elements along y. | |
| const Tv & | values () const |
| Returns 1D value array. | |
| void | attachVariable (model_type &v, int i=0) |
| Attach a model variable at a specified index. | |
| ValueWidget & | padding (space_t v) |
| Set element padding amount. | |
| void | resize (int nx, int ny) |
| Resize grid. | |
| ValueWidget & | select (int i) |
| Select element at 1D index. | |
| ValueWidget & | select (int ix, int iy) |
| Select element at 2D index. | |
| virtual void | onModelSync () |
| Sync self to attached model variables. | |
Detailed Description
template<class Tv, class Tm>
class glv::ValueWidget< Tv, Tm >
Base class for a widget with a grid of values. Constructor & Destructor Documentation
template<class Tv, class Tm>
| glv::ValueWidget< Tv, Tm >::ValueWidget | ( | const Rect & | r, | |
| int | nx, | |||
| int | ny, | |||
| space_t | pad, | |||
| bool | toggles, | |||
| bool | mutExc, | |||
| bool | drawGrid = true | |||
| ) | [inline] |
- Parameters:
-
[in] r geometry [in] nx number along x (ignored by fixed size value types) [in] ny number along y (ignored by fixed size value types) [in] pad padding from border [in] toggles whether the value elements toggle [in] mutExc whether value elements operate mutually exclusively [in] drawGrid whether to draw grid separater for multiple elements
The documentation for this class was generated from the following file:
- /Users/ljp/code/glv-svn/trunk/include/glv_widget.h
